Viking 12 Profile Door (2-glazing)

Product code: UV-V12

Standard Configuration

PassablePassable

Additional Options

SecuritySecurity
Sun protectionSun protection

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

Aluminium Cladding Optional external alucladding
Glazing 26 mm 2-glazing, one LowE glass, argon filled; or insulated panels
Frame Depth 116 mm (128,5 mm with alucladding)
Sound Insulation Rw = 33 dB (-1;-4) - standard glazing
Material of Sash and Frame Door leaf: glue-lam profiles; door frame: qlue-lam pine; quality class A1-A3; aluminium/oak threshold
Color of sash gaskets Grey
Thermal transmittance Uw = 1,40 W/m²K (0,9 x 2,1 m door with standard glass)
Hardware Abloy hinges (aluclad with dr Hahn); Fix espagnolette and handle; ASSA cylinder
Air tightness Class 4 (600 Pa - outw.op); NPD - inw.op.
Water tightness Class 7A (300 Pa - outw.op); NPD - inw.op.
Resistance to wind load Class 4C (1600 Pa - outw.op); NPD - inw.op.

Material of frame and sash

Frame: Glue-lam pine; quality class A1-A3

Door leaf: profile door of glue-lam pine; quality class A1-A3

Finishing

Teknos Aquatop

varvikaart 300px

RAL; NCS and translusent systems:

Värvivalik

Profile door designs:

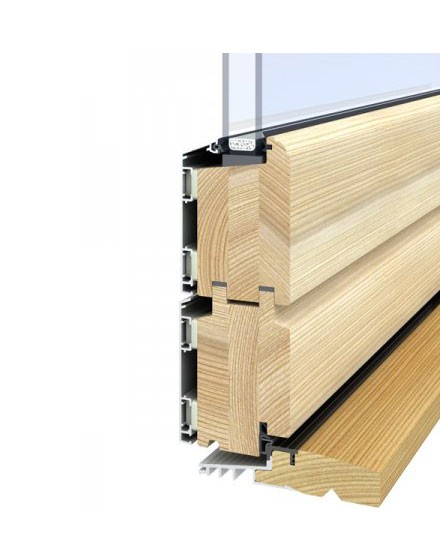

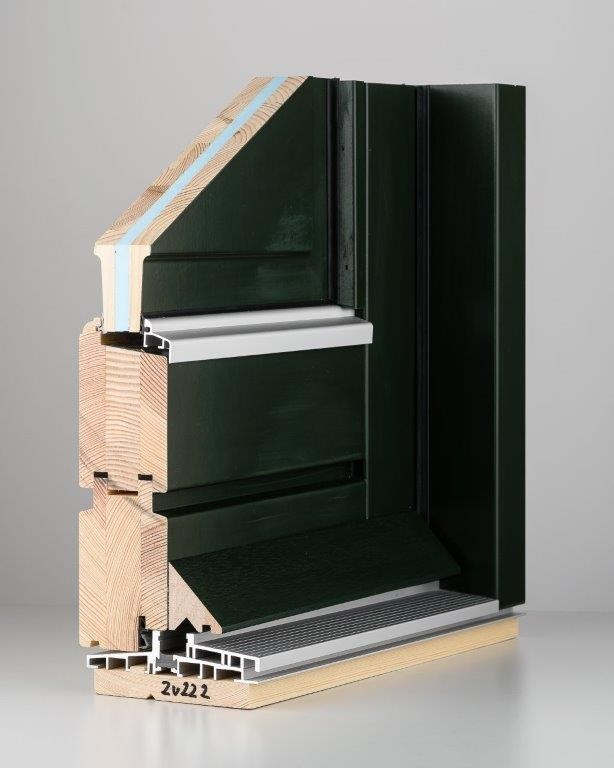

Profile door leaves are assembled of glue-lam timber profiles. Insulated glazing of panels can be used.



Available door designs (click on the images below to see more):



2-glazed doors



door designs





Selction of handles


1918c

1918m

1918mm

1918to
ASSA 1918 chromium ASSA 1918 brass ASSA 1918 matte barss ASSA 1918 black


1956c

1956m

1956mm

1956to
ASSA 1956 chromium ASSA 1956 brass ASSA 1956 matte brass ASSA 1956 black


6638c

6638m

6638mm

6638to
Assa 6638 chromium Assa 6638 brass Assa 6638 matte brass Assa 6638 black


assa6640c

assa6640m

assa6640mm

assa6640to
Assa 6640 chromium Assa 6640 brass Assa 6640 matte brass Assa 6640 black

fix 83 200px assa 835S handle 200px
Fix 83 handle for balcony door ASSA 835S handle for balcony door




Glasing options

Click on the picture below to browse for more:

glazing options 1

Glazing bar options on the glass

(Click on the icon to see larger picture)

Timber door

01 00 01 150px 01-SWS-01-150px.jpg 01-00-03-150px.jpg 01-SWS-03-150px.jpg
Glazing bars 01-00-01
outside Norwegian,
inside Norwegian
Glazing bars 01-SWS-01
outside Norwegian,
inside Norwegian + SWS
Glazing bars 01-00-03
outside Norwegian,
inside Swedish
Glazing bars 01-SWS-03
outside Norwegian,
inside Swedish + SWS
01-00-02-150px.jpg 01-SWS-02-150px.jpg 03 00 03 150px 03-SWS-03-150px.jpg
Glazing bars 01-00-02
outside Norwegian,
inside English
Glazing bars 01-SWS-02
outside Norwegian,
inside English + SWS
Glazing bars 03-00-03
outside Swedish,
inside Swedish

Glazing bars 03-SWS-03
outside Swedish,
inside Sedish +SWS

03 00 02 150px  03-SWS-02-150px.jpg 05-00-05-150px.jpg 04-00-00-150px.jpg
Glazing bars 03-00-02
outside Swedish,
inside English
Glazing bars 03-SWS-02
outside Swedish,
inside English + SWS
Glazing bars 05-00-05
outside and inside
16mm bar
 Removable glazing bar
(25 mm)
04-00-00



Aluclad door

10 00 01 150px 10 SWS 01 150px 10 00 03 150px 10 SWS 03 150px
Glazing bars 10-00-01
outside aluminium,
inside Norwegian
Glazing bars 10-SWS-01
outside aluminium,
inside Norwegian + SWS
Glazing bars 10-00-03
outside aluminium,
inside Swedish
Glazing bars 10-SWS-03
outside aluminium,
inside Swedish + SWS
10 00 02 150px 10 SWS 02 150px 06-00-00-150px.jpg 07-00-00-150px.jpg
Glazing bars 10-00-02
outside aluminium,
inside English
Glazing bars 10-SWS-02
outside aluminium,
inside English + SWS

Removable glazing bar
06-00-00
SPILKA, 24mm

Removable glazing bar
07-00-00
SPILKA, 44mm

Removable glazing bar
08-00-00
SPILKA, 64mm

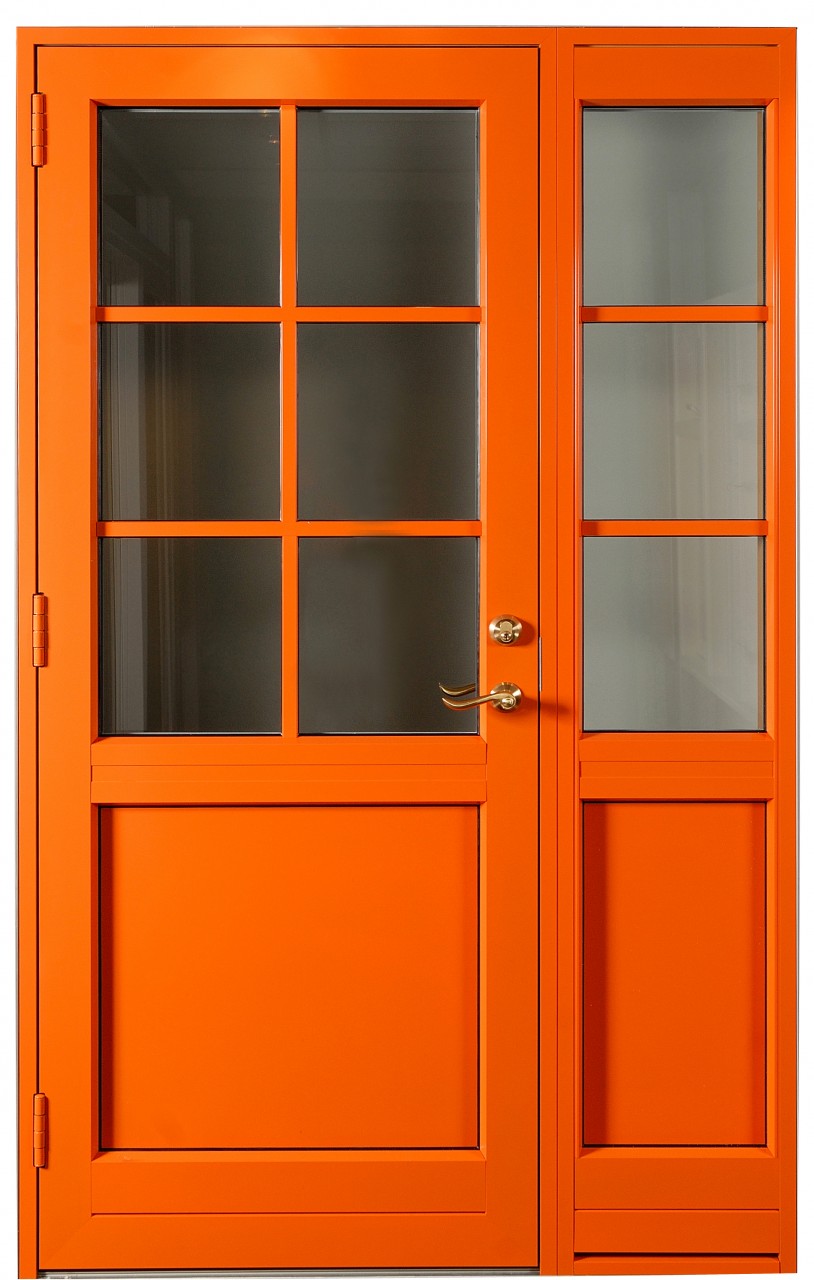

Viking Window manufactures both outward and inward opening traditional entrance doors, patio, and balcony doors*. Doors are made of glue lam wood profiles. Double glazing or insulated panels are used as infills. Thermal transmittance Uw = 1.4 W/m2K.


It is possible to manufacture single or double leaf doors. Finishing according RAL, NCS (paint) or Vikings (lacquer) tone catalog by customer's choice preference. Available as aluminium clad door too.

Closing system by Swedish lock manufacturer ASSA: hinges and three-point locking espagnolette. Patio and balcony doors have a more simple locking system.

Illustration for different models. Discuss options with a sales representative!

----------

* For Viking Window AS door = door set (e.g. leaf, frame and threshold; as a standard, we supply doors with handles and cylinders)
