Viking21 aluclad windows (2- or 3-glazing)
Standard Configuration
3k energy efficient
2k NormalAdditional Options
Sound insulation glasses
Safety
Sun Protection
PAS24 solutionNote: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.
| Aluminium Cladding | Optional external alucladding |
| Glazing | 48 mm 3-glazing, two LowE glass, argon filled |
| Glazing | 26 mm 2-glazing, one LowE glass, argon filled |
| Frame Depth | 116 mm (128,5 mm with alucladding) |
| Sound Insulation | Rw = 34 dB (-1;-5) - with standard 3-glazing |
| Sound Insulation | Rw = 34 dB (-1;-4) - with standard 2-glazing |
| Material of Sash and Frame | Glue-lam pine; quality class A1-A3 |
| Number of sash gaskets | 1 sash gasket |
| Color of sash gaskets | Grey |
| Thermal transmittance | Uw = 0,77 W/m²K (1,23 x 1,48 m opening standard 3-glazed window) |
| Thermal transmittance | Uw = 1,24 W/m²K (1,23 x 1,48 m opening standard 2-glazed window) |
| Hardware | IPA hinges; Mila espagnolette; Fix handle |
| Security | PAS24 solution option |
| Air tightness | Class 4 (600Pa) |
| Water tightness | Class E1500 (1500 Pa) |
| Resistance to wind load | Class 5C (2000 Pa) |
| Dimensions | Side hung: Side projecting: Top hung: Top swing: |
Material of frame and sash
Glue-lam pine, Nordic timber quality class A1-A3
Finishing
Teknos Aquatop
RAL; NCS and translusent systems:
Glasing options
Click on the picture below to browse for more:

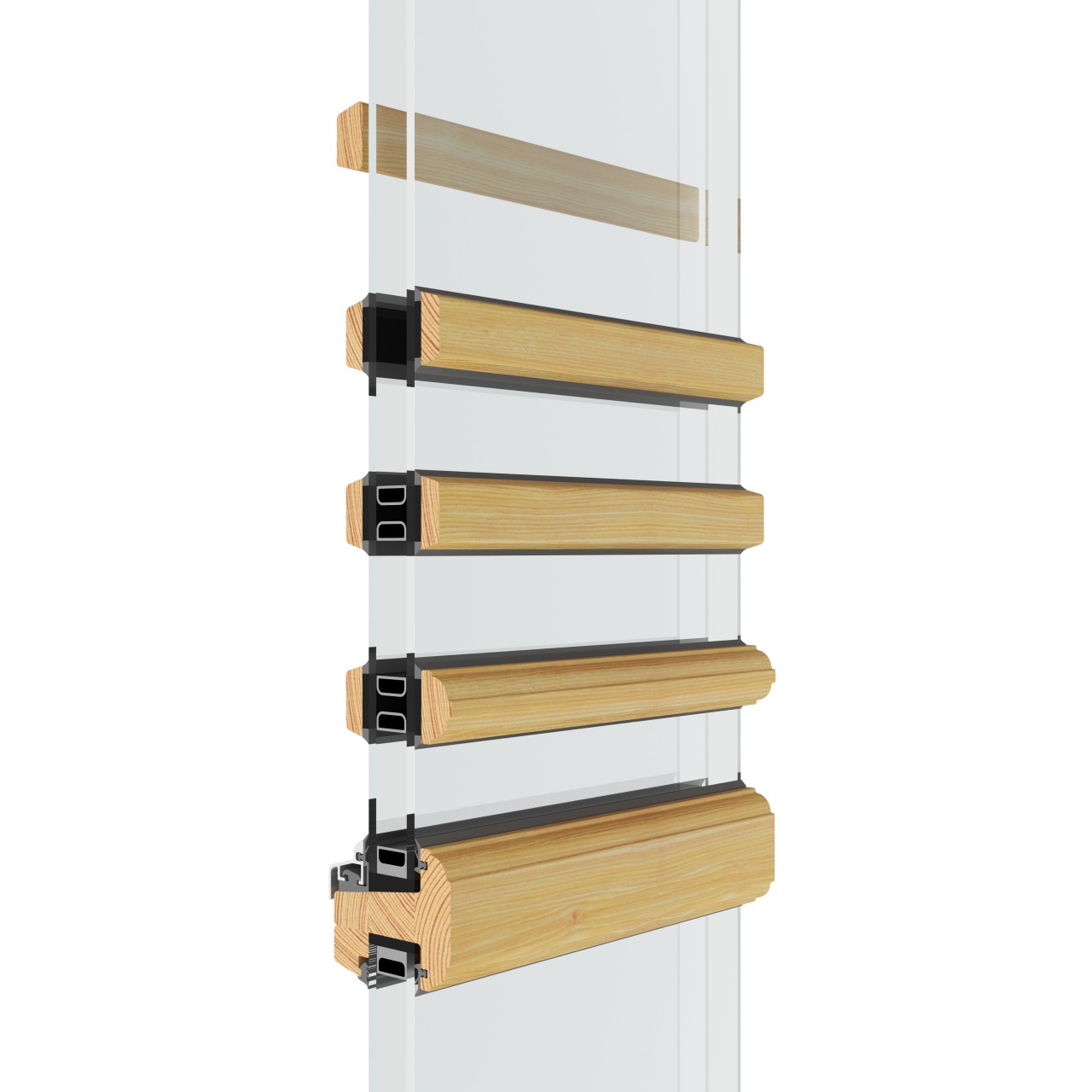

Glazing bar options
(Click on the icon to see larger image)
 |
 |
 |
 |
| Glazing bars (26 mm) 10-00-01 outside aluminium, inside Norwegian |
Glazing bars (26 mm) 10-SWS-01 outside aluminium, inside Norwegian + SWS |
Glazing bars (26 mm) 10-00-03 outside aluminium, inside Swedish |
Glazing bars (26 mm) 10-SWS-03 outside aluminium, inside Swedish + SWS |
 |
 |
 |
 |
| Glazing bars (26 mm)10-00-02 outside aluminium, inside English |
Glazing bars (26 mm) 10-SWS-02 outside aluminium, inside English + SWS |
Removable glazing bar |
Removable glazing bar |
 |
|||
| Removable glazing bar 08-00-00 SPILKA, 64mm |
Selection of handles
(Click on the icon to see larger image)
 |
 |
 |
 |
| Fix 83 | Hoppe 0710LVK-U71Z | Hoppe 0710EVKS-6 | Titon |
 |
 |
 |
 |
| Finger locks - brass | Finger locks - chrome | Finger locks - silver | Finger locks - drop shaped |
 |
|||
| Storm hook | |||
Window boards
| Fiber boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
| Wooden boards: | |||
 |
 |
 |
 |
| A 1.0 | A 1.1 | A 2.0 | A 2.1 |
 |
 |
 |
 |
| A 3.0 | A 3.1 | A 4.0 | A 4.1 |
Fly screens
Standard fly screen material is dark fiberglass mesh:
Illustrations below introduce different types of fly screens applicable for Viking-21 window and also alternative material solutions for the screens:
Viking-21 window fly screen types:
 |
 |
 |
 |
| Wooden screen on hinges | Wooden screen on clips | Fiskostar blindfold | GreenteQ blindfold |
NB! For outward opening windows fly screens are fixed on the internal side - thus there must remain sufficient space for the screen frames or blindfold guide rails. Please discuss with the sales representative any further, more detailed quiestions!
Click on the picture below to browse different net materials:

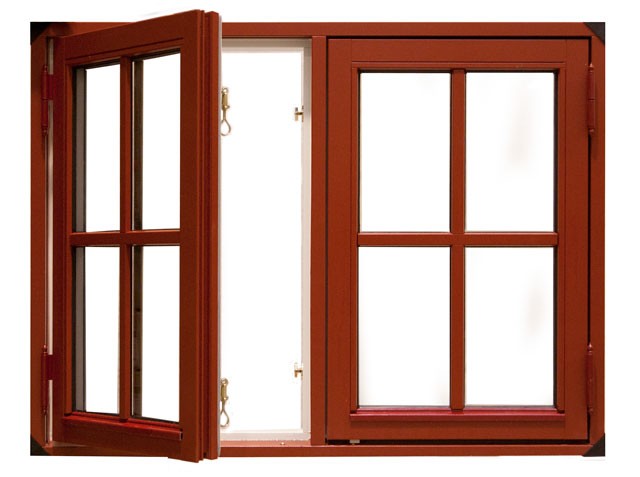

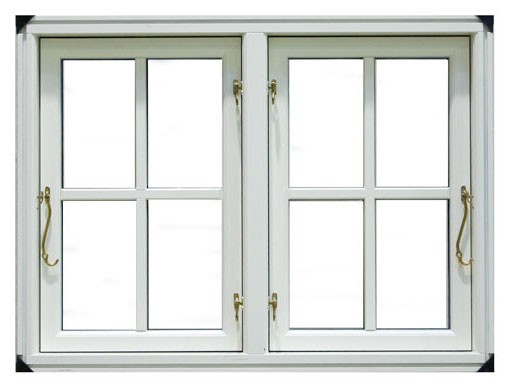

The idea of an outward opening window is developed in Scandinavian countries in harsh climate conditions: in Denmark and in Norway such windows have been the main solution in building practice.

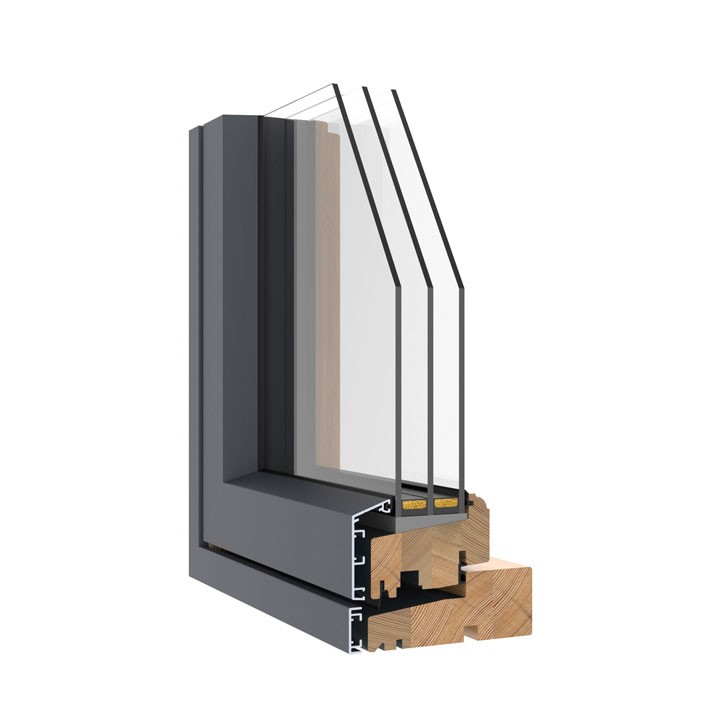

Viking21 aluclad window provides traditiona Scandinavian window design together with external powdercoated aluminium cladding profiles. There is also an option to choose between 2-glazing or 3-glazing.
For more detailed information, please contact our sales department and see the drawings.
The construction of an outward opening window is designed to have excellent performance and functionality during different season through the year: in high humidity, in dry conditions, while it is cold or hot. Gaskets and insulated glazing units used in the design ensure air tightness and energy efficiency. Carefully chosen wood and the use of tested hardware prolong window's life span.
Features of Viking21 window:
- choice between modern look with square edged of traditional looking grooved internal profiles;
- well proven range of different opening types including side projecting, top swing, top hung and side hung;
- projecting opening types in Viking's product line to enable easy access for both sides of a window for cleaning purposes;
- 2- or 3-glazed option with the same frame profiles and opening types range for both timber and aluclad windows;
- 26 mm glazing unit for 2-glazed window;
- 48 mm glazing unit for 3-glazed window - which conforms to modern energy efficiency;
- handle is always in the centre of sash profile;
- PAS24 UK security tested design.
